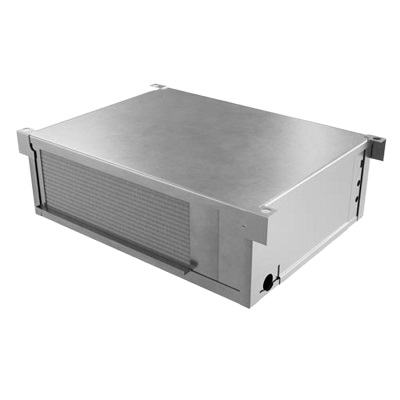

Horizontal Water Source Heat Pumps
Models UZHPL: Sizes 02-12/ 0.5-3.0 Tons
Unilux HVAC’s standard horizontal heat pump is designed for residential applications, combining peak energy efficiency and low upfront costs. Water source heat pumps operate on a closed water loop that either extracts heat from the loop and disperses it throughout the suite to provide heating or absorbs heat from the suite and expels it back to the loop to provide cooling. This provides on-demand heating and cooling year-round, with each heat pump operating independently of each other.
Ratings and Listings
Unilux HVAC horizontal water source heat pumps are ETL listed and AHRI certified.
Standard Features
Cabinet
Manufactured with 20-gauge satin steel. Configured with front, back, left, right or top supply air openings. Cabinet is fully insulated with 1″ fibreglass with a thermosetting resin. It is coated on the air stream side with an acrylic facing without the use of flammable adhesives. Insulation inside the unit has a flame-spread rating no more than 25 and a smoke-developed rating no more than 50.
Drain Pan and Overflow Sensor
Stainless-steel drain pan with neoprene insulation. A flex hose connects the drain pan with the condensate riser to form P-trap and is easily accessible for cleaning. The pan includes an overflow sensor to detect rising water levels and turn off the unit to prevent flooding.
Risers
Supply and return risers are type ‘L’ copper and condensate risers are type ‘DWV’. All have 75mm (3″) deep expanded ends to facilitate field installation. Supply and return risers are insulated with 1″ fibreglass covered with a vapour barrier jacket, which complies with ASTM 84 for flame-spread and smoke-developed ratings. The insulation is continuous over the riser length within the height of the cabinet.
Supply Air Grilles & Registers
Double-deflection supply air grilles have adjustable vertical and horizontal louvers. They are constructed with light gauge, powder-coated metal.
Fan & Motor Assembly
A thermally-protected, multi-speed ECM motor is resiliently mounted to a centrifugal fan which has a galvanized steel forward-curved DWDI wheel in a galvanized housing.
Refrigeration Chassis
A completely removable, floating design chassis minimizes vibration and allows easy access for service. The chassis is complete with a rotary or scroll compressor enclosed in a sound dampening and isolated box, coax heat exchanger, TX valve, 4-way reversing valve, balancing valve, 2-way valve and motorized actuator, DX coil and R410a refrigerant piping.
Filter
One 1″ MERV 8 filter and one disposable filter are included with the return air intake opening.
Access Panel
20-gauge steel construction finished in a durable enamel powder coat. Includes a hinged door for easy filter exchange.
Ball Valves
Manual shut-off valves.
Water Hoses
Flexible supply and return lines isolate compressor noise from the building’s pipe system.
